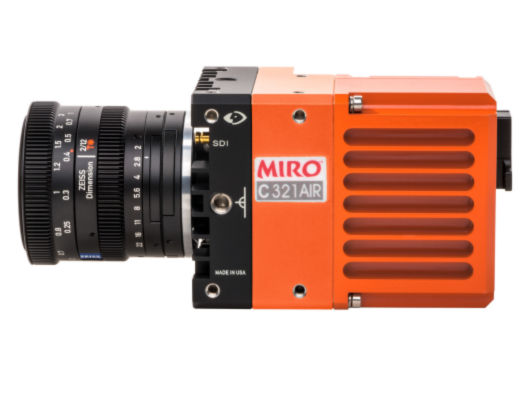

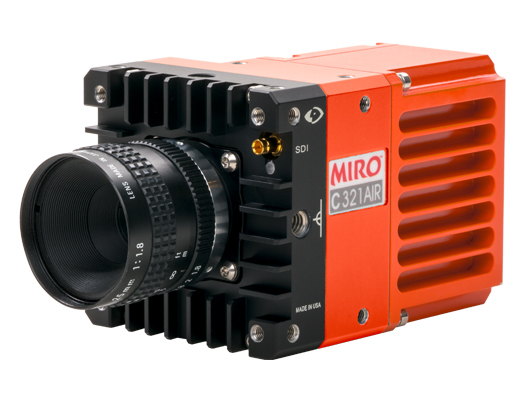

C321 AIR
The Phantom Miro C321 AIR delivers exceptional HD imaging in a highly durable, rugged body designed to withstand extreme airborne test conditions. Its advanced technology ensures reliable performance in demanding environments, capturing precise, high-speed visuals effortlessly. With enhanced light sensitivity, compact design, and robust construction, it excels in aerospace, defense, and research applications. The camera’s cutting-edge features provide unmatched clarity, ensuring critical data capture in the most challenging scenarios. Its user-friendly interface and adaptability make it an ideal choice for professionals requiring superior imaging solutions in extreme conditions.
- 1480 fps at 1920 x 1080
- Sensitivity: Quantum Efficiency*
- Mono: 45.3%
- Color: 31.5%
- Memory Capabilities:
- 16 GB RAM

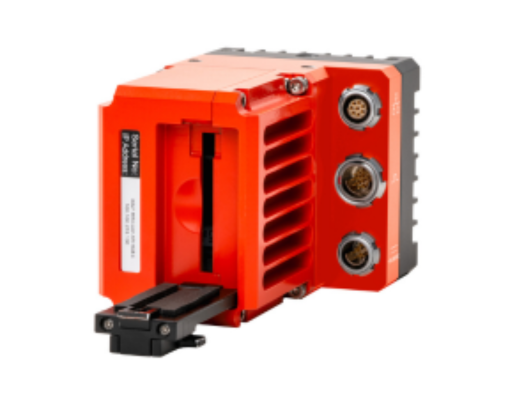

- Latched door for removable CFast card
- QExFF at 532nm
- ✅ 10-micron pixel for high sensitivity in a compact package.
- ✅ High frame rate at HD resolution, with a minimum 1-microsecond exposure time for reduced motion blur.
- ✅ Up to 94,000 fps at reduced resolutions.
- ✅ 16GB memory with CFast capability, memory partitioning, and autosave for secure storage.
- ✅ Programmable I/O for flexible test configurations.
- ✅ Designed to meet MIL-STD 810H, 704, and 461 test standards.
Key Features:
- 🎯 1920 x 1080 resolution
- 🎯 High sensitivity
- 🎯 Operational temperature: -55°C to +50°C
- 🎯 Small form factor
What’s in the Box?
- 📦 40W Power supply with XLR extender
- 📦 Ethernet cable
- 📦 DIN 1.0/2.3 cable for SDI
- 📦 MiniBOB
*Printed Manual and PCC Software CD available upon request.
| Resolution | FPS |
|---|---|
| 1920 x 1080 | 1,480 |
| 1920 x 800 | 1,990 |
| 1280 x 1024 | 1,560 |
| 1280 x 720 | 2,210 |
| 1280 x 512 | 3,090 |
| 640 x 480 | 3,290 |
| 640 x 128 | 11,765 |
| 640 x 8 | 94,510 |
Common resolutions and frame-rates, other resolutions available.
| Short Description |
The Phantom Miro C321 AIR provides high quality, HD images in a small and rugged package specifically designed for harsh aerospace applications. |
| Throughput/Speed |
|
| Sensor Specifications |
|
| Exposure |
|
| Memory |
|
Miro C 1.0/2.3 DIN cable
1.0/2.3 DIN to BNC cables, with female connectors for HD/SDI in Miro C210, C210J, C320, C320J, C321, and C321J.
FAQ's
The Miro C’s do not have a mechanical shutter. This allows them to be as rugged as they are but can make a CSR for good image quality inconvenient because you need to cover the lens. When you turn the camera off, the CSR returns to the factory default.
For customers that rarely change their camera settings, the “Set new CSR default” feature provides a convenient alternative to this process. You must operate the camera at full resolution, for example 1920 x 1080 for the C321. You may then set the CSR for the frame rate and exposure time you are using. That CSR will remain through turning the camera off and on, for as long as you don’t change that setting. Always run at 1000 fps and a certain exposure, for example? Set CSR once, get great image quality, and don’t worry about it again, no matter how many times you turn the cameras on and off.
For customers that rarely change their camera settings, the “Set new CSR default” feature provides a convenient alternative to this process. You must operate the camera at full resolution, for example 1920 x 1080 for the C321. You may then set the CSR for the frame rate and exposure time you are using. That CSR will remain through turning the camera off and on, for as long as you don’t change that setting. Always run at 1000 fps and a certain exposure, for example? Set CSR once, get great image quality, and don’t worry about it again, no matter how many times you turn the cameras on and off.
All C321 AIR testing is conducted with a CFast card installed to ensure the full operation is functioning under the stated test conditions.
Yes. Look in the General Support Documents page for the CE Declarations here:prop@aero-ts.com
